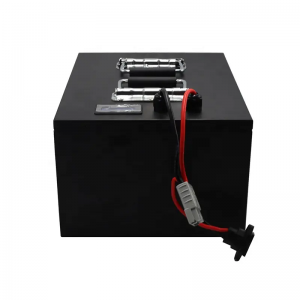

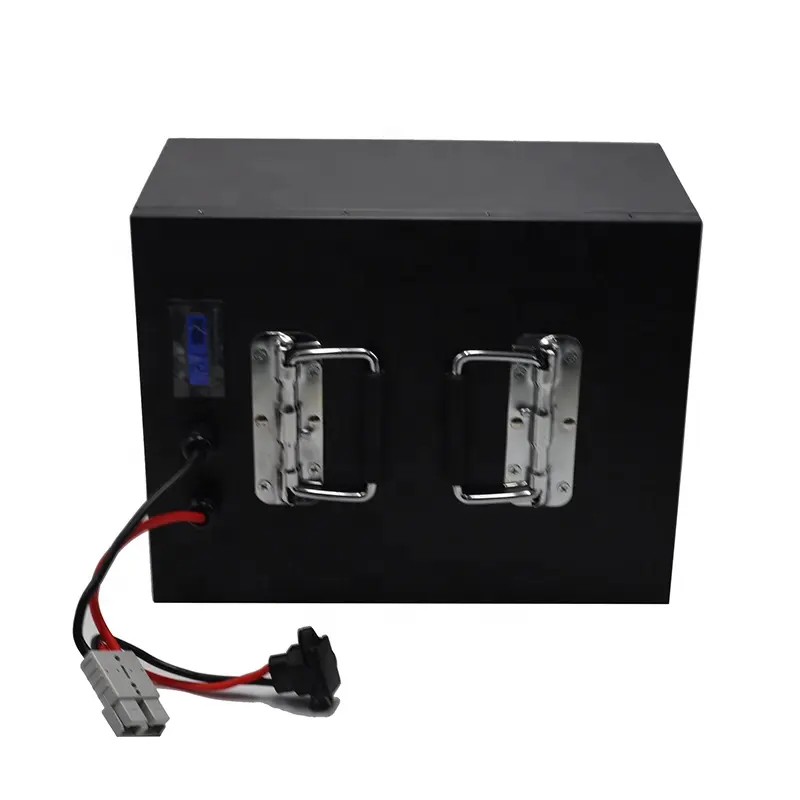

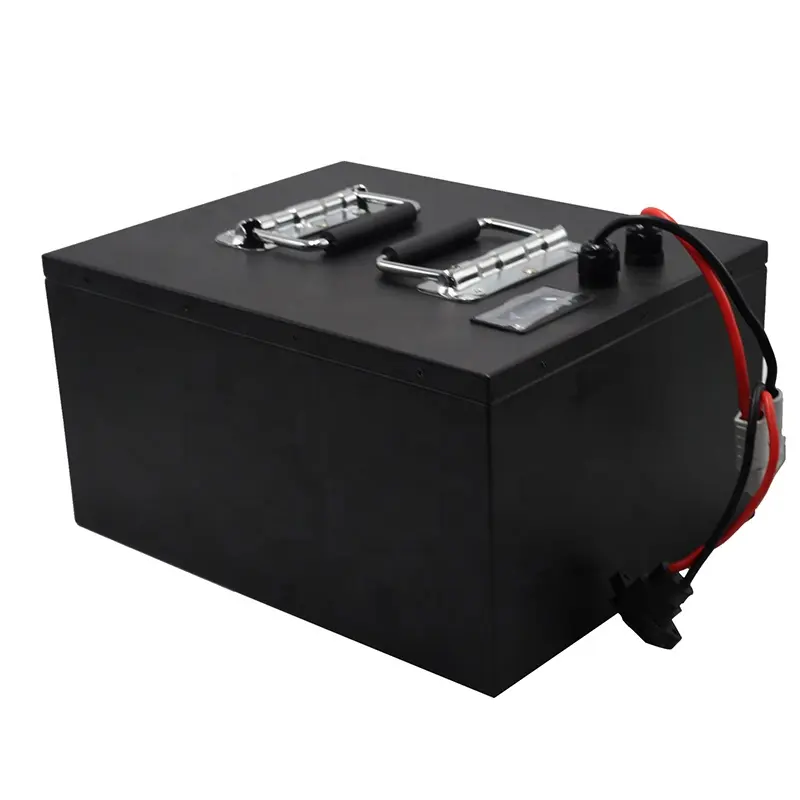

Dostosowany akumulator LiFePO4 72 V 60 Ah Akumulator litowo-jonowy do pojazdów elektrycznych

2023-06-06 02:13

Specyfikacja

Nazwa handlowa	WSZYSTKO W JEDNYM
Model	AIN7260
Gwarancja	5 lat
Napięcie nominalne	76,8 V
Wydajność nominalna	[email protected]/customize
Energia	4416Wh
Wewnętrzny opór	≤50mΩ
Cykl życiowy	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Samorozładowanie	≤3,5% miesięcznie przy 25 ℃
Max. Napięcie ładowania	87.6 V
Tryb ładowania	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Prąd ładowania	30A
Max. Prąd ładowania	60A
Prąd rozładowania	30A
Max. discharge Continuous Current	60A
Max. Prąd impulsu	120A(<3S）
Rozładowanie napięcia odcięcia	60V
Temperatura ładowania	0 ℃ do 45 ℃ (32 ℉ do 113 ℉) przy 60 ± 25% wilgotności względnej
Temperatura rozładowania	-20 ℃ do 60 ℃ (-4 ℉ do 140 ℉) przy 60 ± 25% wilgotności względnej
Temperatura przechowywania	0 ℃ do 45 ℃ (32 ℉ do 113 ℉) przy 60 ± 25% wilgotności względnej
Odporność na pył wodny	IP55
Komórka i format	LFP  60AH 24S1P/customize
Obudowa	Metal Case
Wymiar (L * W * H * TH)	dostosować
Waga	50kg
Terminal	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
Metoda ładowania	CC / CV
Terminal Type	M6 or Anderson or another bolt screw/customize
Certyfikat	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

Przypomnienie

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

Podanie

Nasz zakład

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

Pakowanie i wysyłka

Uszczelka

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

Wysyłka 

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



FAQ

P: Jak mam zapłacić? Jakie formy płatności akceptujesz?
A: T/T, PayPal, Western Union.

P: Czy zamówienie próbki jest dopuszczalne?
Odp.: Tak, w przypadku większości baterii przykładowe zamówienia na testowanie jakości są rozsądne i dopuszczalne.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

P: Jaka jest twoja gwarancja?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. Za spowodowane uszkodzenia, takie jak wybrzuszenie/spawanie akumulatora, akumulator bez ochrony BMS spowodowany ładowaniem.
