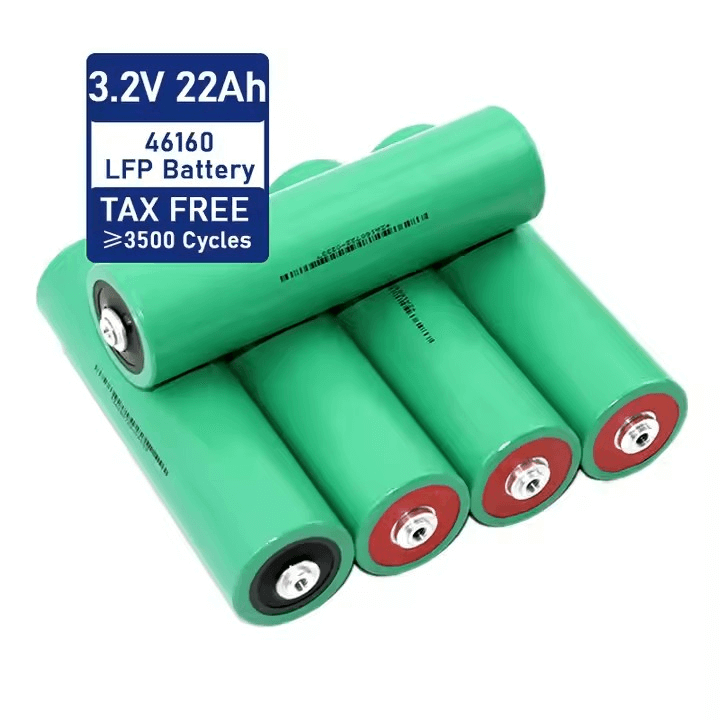

Deep Cycle Cylindrical 3.2v 31ah 30ah 3.2v 22ah 20ah 25ah Pin Lithium 46160 Lifepo4 Battery Cell With Busbar

2025-03-16 05:48

Specyfikacja

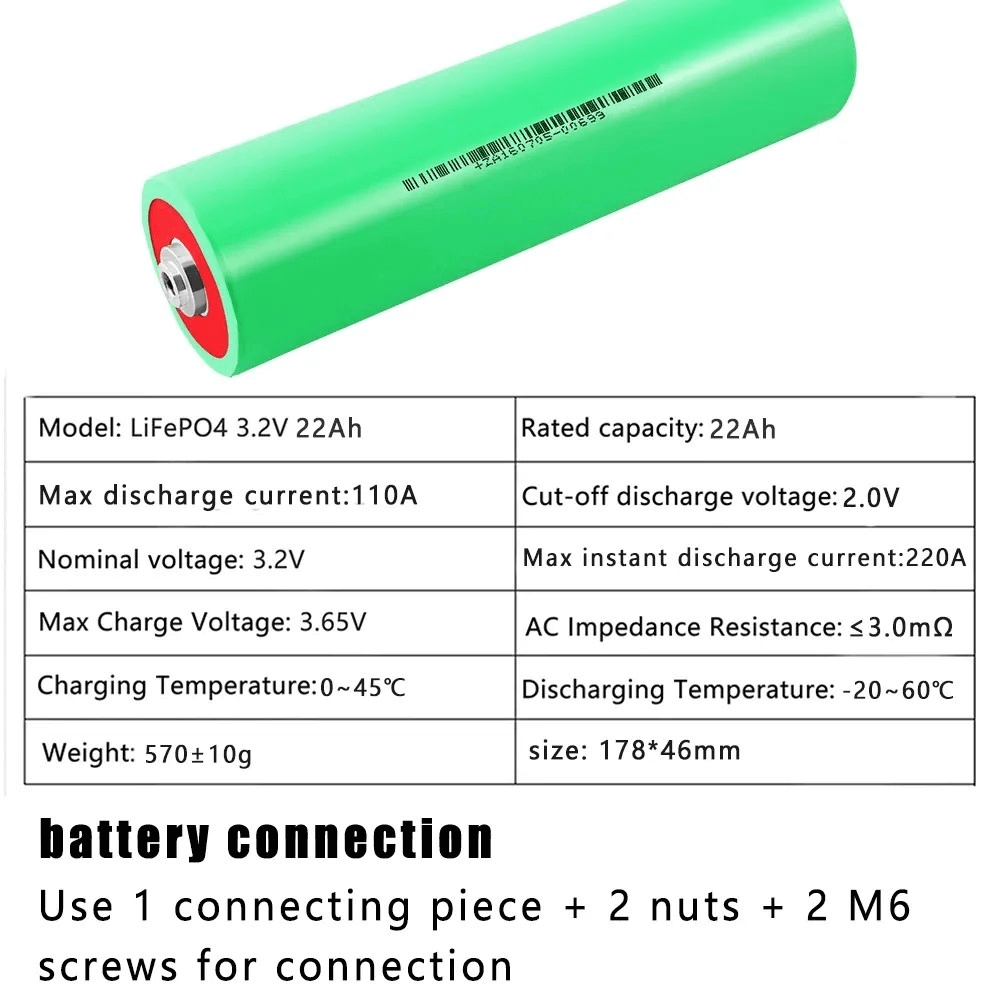

Model baterii	3.2v 25Ah (46160)
Typ Baterii	LiFePO4
Napięcie nominalne	3,2V
Wydajność nominalna	25000mAh
Wewnętrzny opór	≤3 mohms
Cykl życiowy	More than 2000 times, DOD at 80%

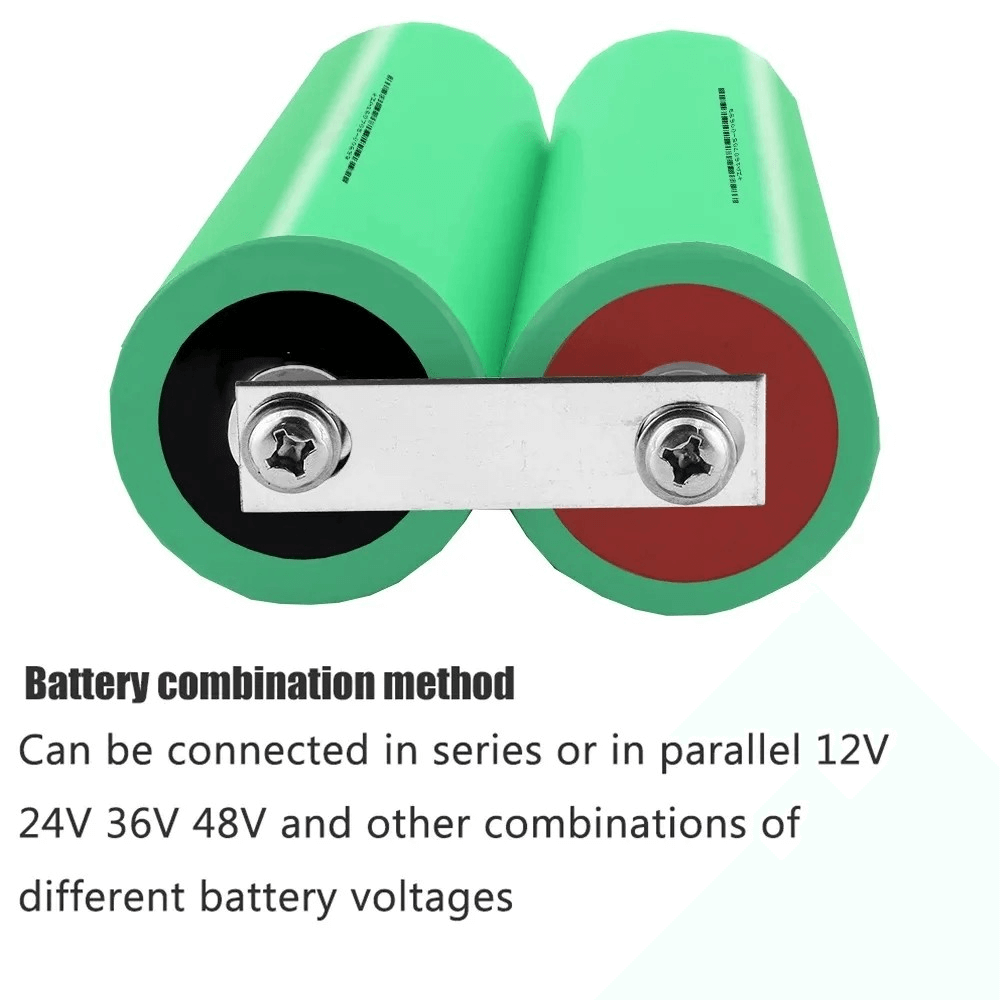

Połączenie	Can be 3s 4s 8s 12s 16s , etc
Recommended constant current	12A (0.5C)
Napięcie odcięcia rozładowania	2.0v/cell
Input Charging Voltage	3.65v/cell
Input Charging Current	12A
Ciągły prąd rozładowania	125A (5C)
Max Current Discharge	250A (10C)
Wilgotność przechowywania	≤85%RH
Temperatura ładowania	0~45Centigrade
Temperatura rozładowania	-20~60Centigrade
Temperatura przechowywania	-20 ~ 45 stopni Celsjusza
Waga akumulatora	About 565g

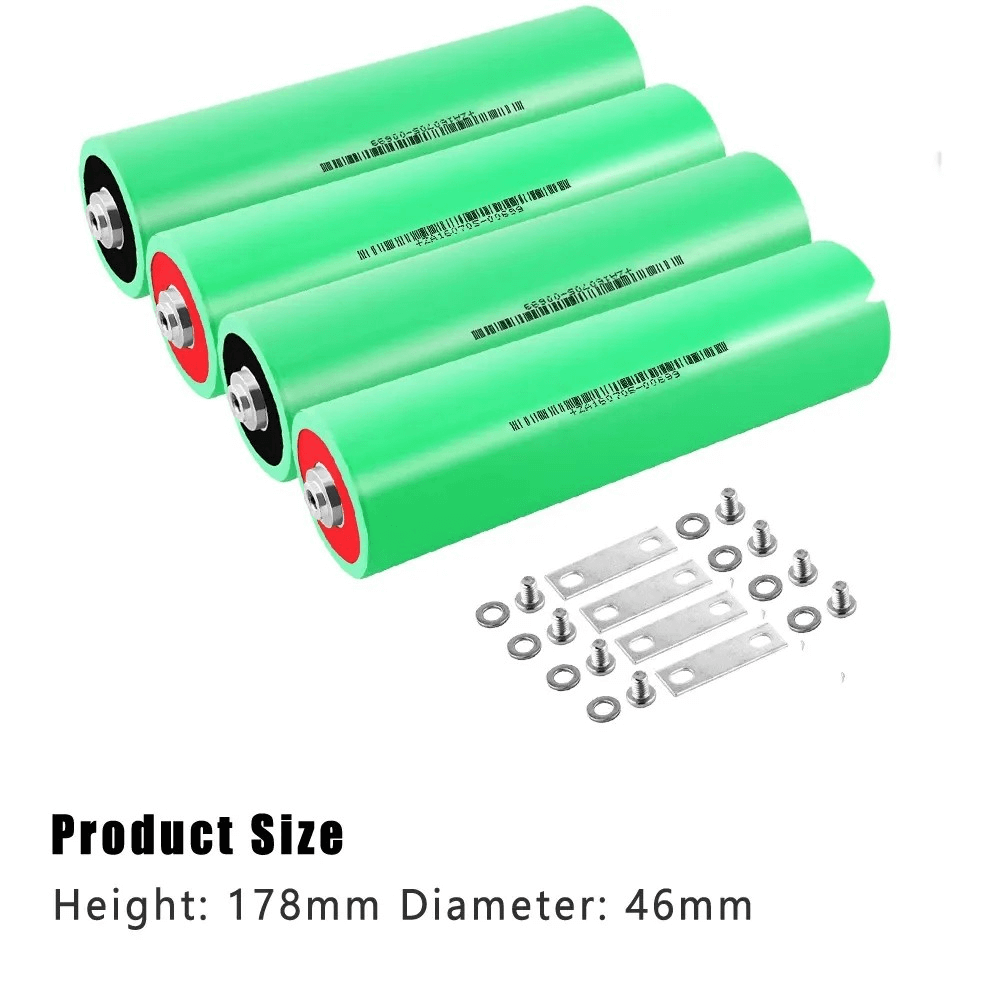

Rozmiar baterii	177*46mm

Uwaga

1.We promise: All the LiFePO4 battery cell are grade A series. And it has 3 years warranty.

2.Most of the Battery Cell is DDP shipping, which including tax and VAT. Besides, we will choose the best shipping way according to your country. Also, you can contact us, we will give you the best price.

3.We support online installation guidance, Troubleshooting support, and free replacement parts service.

4.All the cells support DIY battery pack. If you need a inverter or BMS, we can give you more discount.

Ostrzeżenie

1. Battery management systems can not be used in series.
2. BMS power components with stand voltage 100V.
3. If the battery module is assembled in the form of long wire and long copper bar, it must communicate with the BMS manufacturer for impedance compensation.Otherwise, it will affect the consistency of the cell.
4. The external switch on BMS is prohibited to connect with other equipment. If necessary, please confirm with the technology for docking. Otherwise, BMS will not bear any responsibility for damage.
5. Do not touch the surface of the core directly when assembling, so as not to damage the core. The assembly should be firm and reliable.
6. In use pay attention to lead wire head, soldering iron, solder and so on do not touch the components on the circuit board, otherwise it may damage the circuit board.
7. Use process should pay attention to anti-static, moisture-proof, waterproof and so on.
8. Please follow the design parameters and use conditions during use, must not exceed the value in this specification, otherwise it may damage the protection board.
9. After combining the battery pack and the protection plate, if you find no voltage output or charge, please check the wiring is correct.

Podanie

Nasz zakład

ALL IN ONE Battery Technology Co Ltd, which was established in 2010, is one of the fullest range battery cells and battery packs company.Providing complete primary battery,LiFePO4, Li-polymer, Lithium-ion, Ni-MH and Ni-CD rechargeable battery single cells and PCM system solutions.We mainly produce lifepo4 battery, which are widely used in New energy vehicle industry, Solar energy storage, UPS system,Utility grid, etc.

Dlaczego właśnie my?

*Top supplier for Lithium ion Battery based in shenzhen china over 15 years, including 3.2v prismatic lifepo4 battery，cylindrical 3.7v lithium battery ,and AA  AAA 1.2V 1.5V Battery.

*Direct distributor for EV, CATL, LISHEN, REPT, GOTION, CALB, BYD, YINLONG, HiGee, Ganfeng. Can provide you 100% original Top quality Grade A New brand cells from those brand.

*OEM / ODM service acceptable. Can customized LiFePO4 battery pack with cells you asked. 100% guarantee the quality as you expected.

*Bulk Stock for lifepo4 cells in china & USA & EU warehouse. Quick Shipping service is available

*Support fully refund if used cell or bad quality cell received from us!

*100% Technical Support. QC checking by pictures or videos before shipping. No need for extra cost on this service.



Pakowanie i wysyłka

FAQ

1.Are the batteries Top Quality,Brand NEW?

Yes, Top quality. the QR code is intact, Brand new from original factory.

2.Are the batteries come with bus bars+bolts?

The price come with Bus bars and Bolts，One Battery will come with one set bus bar and bolt（e.g.,If buy 4pcs battery,we will send 4pcs cells with 4pcs bus bars and 8pcs bolts）If need more please contact us online.

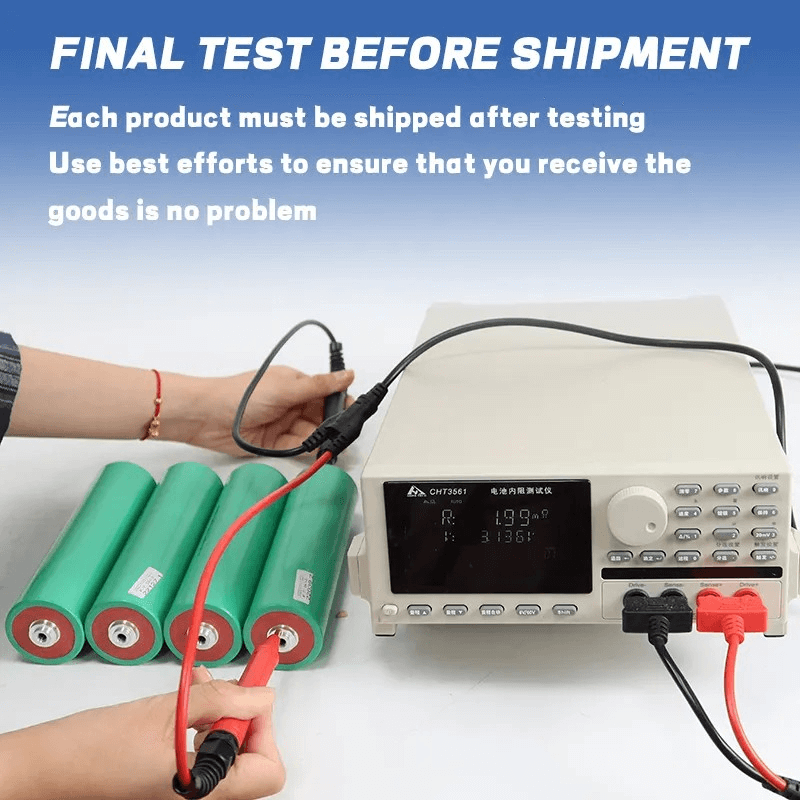

3.Can you test each battery PRIOR to shipping?

Przed wysyłką przetestujemy wszystkie napięcie baterii i rezystancję wewnętrzną.

4.What kind of the package of the cells?

Zapakuj z mocnym opakowaniem, każdą komórkę w piankę PE o grubości lub torbę, a następnie w 5 warstw mocnego kartonu.

5.How can I place the order?

Usually we accept order online，and you can send us inquiry or chat with us online.

6.How can I do if I need more help for the order?

You can chat with our sales online or send inquiry email,we will respond you ASAP.

7.What is delivery time if we place an order?

Ship from overseas warehouse, 3-7 working days arrive. Ship from China by sea, 40-60 working days arrive. Please provide your detailed address to us before placing an order, we will match you with the best delivery plan.

8.Why received scuff marks LiFePO4 Prismatic cells?

Scuff marks is normal factor, due to factory QC has been inspected several times. There will be a little scuff marks in various inspections through all the batteries are placed together to check at our warehouse by QC; And All prismatic cells will make the Laser Welded studs, check each cell Voltage and Internal resistance to make sure the battery cells get matched and batched at our warehouse.
