Pakiet akumulatorów OEM ODM 18650 24 V 26 Ah

2024-04-23 06:10

Specyfikacja

Nie.	Pozycja	Parametr ogólny		Uwaga
1	Pojemność znamionowa	Typowy	26Ah	Standard discharge(0.2C5A)after standard charge
		Minimum	25.5Ah
2	Napięcie nominalne	24V		Średnie napięcie pracy
3	Napięcie na końcu rozładowania	19,25V		Napięcie odcięcia rozładowania
4	Ładowanie pod koniec napięcia	29,4V
5	Impedancja wewnętrzna	28mΩ
6	Opłata standardowa	Constant Current 0.2C5A Constant Voltage 29.4V 0.02C5A cut-off
7	Standardowe rozładowanie	Constant Current 1C5A end Voltage 19.25V
8	Szybkie ładowanie	Constant Current0.5C5A Constant Voltage 29.4V 0.02C5A cut-off
9	Szybkie rozładowanie	Constant Current 3C5A end Voltage 19.25V
10	Maksymalny ciągły prąd ładowania	0.5C5A
11	Maksymalny ciągły prąd rozładowania	3C5A
12	Zakres temperatur pracy	Charge:5~45℃		60+/-25%R.H. Bare Cell
		Absolutorium: -10 ~ 60 ℃
13	Zakres temperatur przechowywania	Mniej niż 1 rok: -20 ~ 25 ℃		60+/-25%R.H. at the shipment state
		Less then 3 months:-20~40℃
14	Waga	Approx 6kg

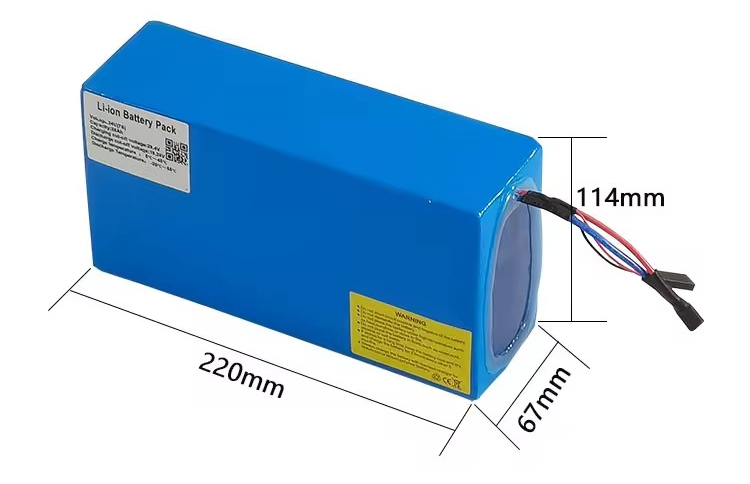

15	Wymiar	220*67*114mm



General Feature

Long cycle life more than 1000 times

Over-charge/over-discharge/over-current safety protection

Short circuit safety protection

High temperature safety protection

In-built safety protection BMS

All battery are complied with ISO/CE/UN/EC/EN62133/MSDS

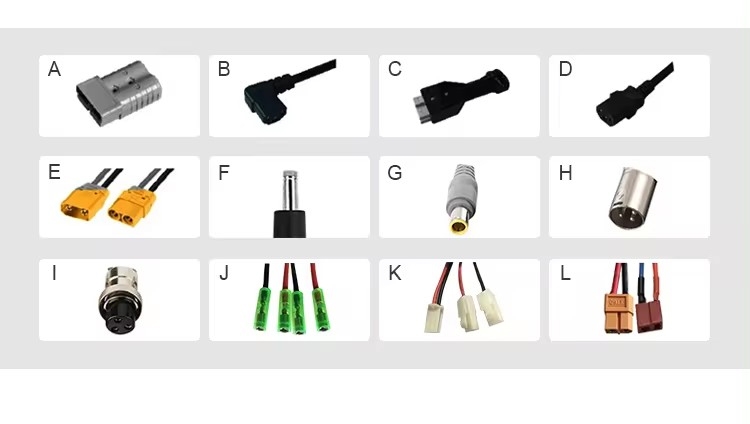

Discharge Connector

Podanie

The PVC lithium ion battery packs can be widely used in ebike,electric scooter,robot,medical device,electric motorcycle,electric wheelchair,energy storage etc.

Package/Shipping

1.Packing:All goods are 100% tested pass before dispatch and packed by customized spongs with high hardness/thick cartons

2.For Samples:can ship within 7-10days
